Flange Bolting

Stud Bolts

January 12, 2017 By Sigma Fasteners

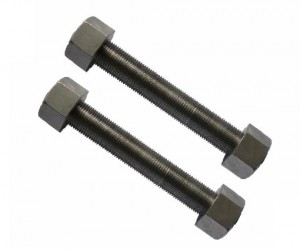

Stud Bolts

Stud Bolts

Stud Bolts
Stud Bolts

Stud bolts are available in ASTM Grades B7, L7, B16, B16M, L7M, B8, 660 and B8M; they are also available exotic metals such as Monel, Titanium, Inconel, Alloy 20, and Hastelloy, 17-4PH. These studs are also available with industrial coatings such as SermaGard, Xylan, PTFE, Fluoropolymers and other coatings.

Stud Bolts for Pressure-Temperature Piping

  • Continuous Thread Studs (Fully Threaded Studs)

Stud bolts are threaded end to end and are often used for flange bolting with two nuts on either end.

There are two types of these studs.

  • Type one – usually for general purpose; the length of stud is measured from end to end. Threads are UNRC-2A.
  • Type two – studs for high temperature pressure piping. These studs are made to dimensional standard requirements of ANSI B16.5 the length of this stud is measured from first thread to first thread, exclusive of points. Threads are UNRC-2A for sizes 1 inch and under and 8 UNR-2A for sizes over 1 inch. The length of stud bolt, measured parallel to the axis, is the distance from first thread to first thread. First thread is defined as the intersection of the major diameter of the thread with the base of the point.

Double End Stud Bolts

Tap End Stud Bolts

ASTM Material Selection Chart

Bolting And Ring Gasket Requirements

March 19, 2016 By Sigma Fasteners

Bolting Requirements for Flanges

Bolting Requirements for FlangesASME/ANSI B16.5 – 1996 – Pipe Flanges and Flanged Fittings

The ASME B16.5 – 1996 Pipe Flanges and Flange Fittings, flange bolt and gasket standard covers pressure-temperature ratings, materials, dimensions, tolerances, marking, testing, and methods of designating openings for pipe flanges and flanged fittings.

The standard includes flanges with rating class designations 150, 300, 400, 600, 900, 1500, and 2500 in sizes NPS 1/2 through NPS 24, with requirements given in both metric and U.S units. The Standard is limited to flanges and flanged fittings made from cast or forged materials, and blind flanges and certain reducing flanges made from cast, forged, or plate materials. Included in this Standard are requirements and recommendations regarding flange bolting, flange gaskets, and flange joints. The standard covers the required number of bolts, diameter of the stud bolts, length of stud bolts and ring size in R, 1RF, RTJ, and RX  gaskets.

Flange Bolt Requirements
