Tap End Stud

November 13, 2016 by · Leave a Comment

Sigma Fasteners manufactures Tap End Stud bolts to your print, Tap End Stud Bolt Standard or AWHEM Standard in all ASTM grades.

Tap End Stud Bolts

Tap End Stud Bolts

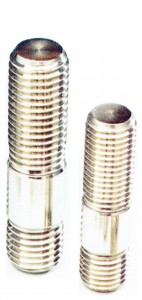

Tap end studs have a short thread length on the tap-end side typically threaded tor Class UN-3A fit. This side is screwed into a tapped hole. The nut end  of the stud is threaded with a Class UN-2A fit. Length of the stud is measured form end to end. The tap end has a chamfered point, but the nut end may have either a 30° or 45° chamfered end or round raduised end, at the customers option.The tap end can be measured from the end to last scratch, end of the chamfer to the last full thread or any combination of last scratch, last full thread, end or end of chamfer.

Tap-end studs in standard and exotic metals with multiple finishes:

ASTM B7, B7M, B8, B8M, 660,718, 17-4ph, MP35 and more.

Unfinished, SermaGard, Xylan, PTFE. Moly, zinc or cad plated.

Sigma can lower your cost for tap end studs with contract pricing or managed inventory.

ASTM Material Selection Chart

Catalog: Tap End Stud

Your Name (required)

Your Email (required)

Phone Number (required)

Company (required)

Message

Attach File: Allowed File types: .pdf .txt .tif .tiff .jpg .doc .docx .dwg .xls .xlsx
Max 2MB

captcha

Enter above text in the space below:

Stud Bolts

May 25, 2016 by · Leave a Comment

Stud bolts for Pressure-Temperature Piping

Stud Bolts are used in High Pressure & Temperature flanged fittings

REFERENCE
Stud bolts for high pressure & high temperature applications conform to the requirements of ANSI/ASME B16.5, Steel Pipe Flanges and Flanged Fittings.

LENGTH-FIRST TO FIRST
The length of stud bolt, measured parallel to the axis, is the distance from first thread to first thread. First thread is defined as the intersection of the major diameter of the thread with the base of the point. Please see the drawing above-this is confusing to most users!! Stud bolts are normally available from stock in 1/4 inch length increments. Length tolerances, all stud bolt sizes, shall be as tabulated below:

Length, in. Length Tolerance, in.
to 12                           +/-0.062

over 12 to 18          +/-0.125

over 18                      +/-0.250

POINTS
Points shall be flat and chamfered, or sheared at option of the manufacturer. When points are flat and chamfered, the diameter of the flat shall not exceed the minor diameter of the thread, and shall be not less than one or more than two complete threads as measured from the extreme end parallel to the axis.

THREADS
Threads shall be Unified inch coarse thread series (UNC), Class 2A, for all stud bolt sizes 1 in. and smaller, and Unified inch 8 thread series (8 UN), Class 2A, for all stud bolts larger than 1 in., in accordance with ANSI/ASME B1.1. Acceptability of screw threads shall be determined based on ANSI/ASME B1.3.

MATERIAL
Chemical and mechanical requirements shall be specified by the purchaser and shall be in accordance with applicable ASME, ASTM, and ANSI codes and specifications current at the time of ordering.

ASTM Material Selection Chart – Stud bolas are available in ASTM A193 Grade B7, B7M, L7, L7M. As well as 660, 718 Inconel, Mp35N and other high nickel alloys and stainless steels.

DESIGNATION
It is recommended that stud bolts be designated in the following sequence: product name, nominal size, threads per inch, length, material, and protective finish, if required.

Example: ANSI/ASME B16.5 stud bolt,
5/8-11 x 3-1/2, ASTM A193, Grade B7, Zinc & Clear Chromate Plated
